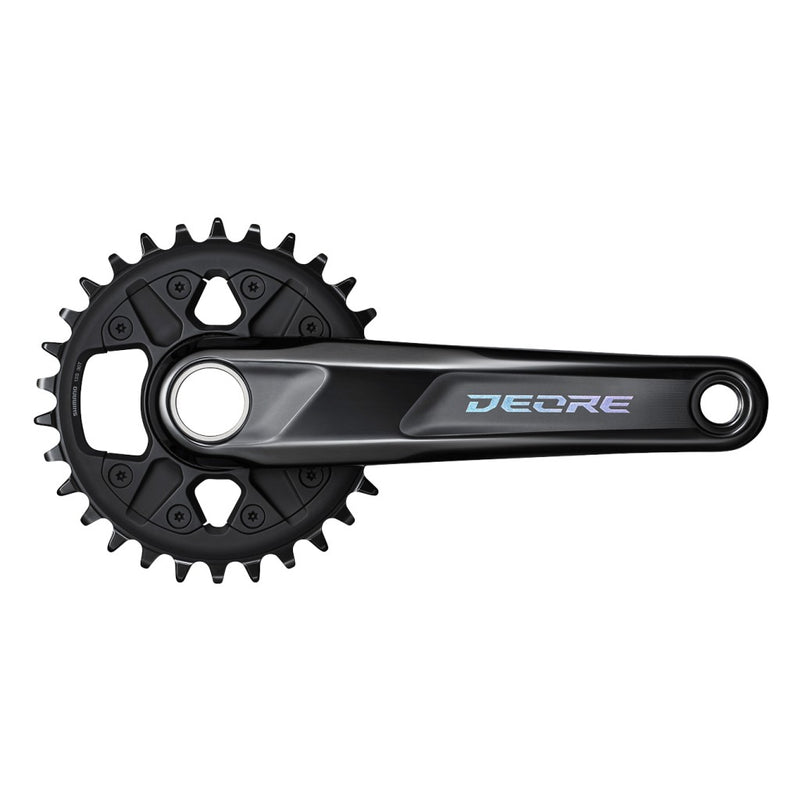

Shimano Deore FC-M6100 Crankset 32T 170mm EFCM61001CXA2

Shimano Deore FC-M6100-1 Crankset 12 Speed ​​30/32T

Lightweight and rigid direct mount crankset for 1x12 systems.

The Shimano Deore FC-M6100-1 crankset is specifically designed for 12-speed 1x12 drivetrains. Built with technologies inherited from top-tier groups like XTR, XT, and SLX, this crankset is an ideal choice for cyclists who prioritize price-performance.

Thanks to its 2-piece Hollowtech II construction, it offers low weight and high rigidity. The Direct Mount chainring system, with DCE+ (Dynamic Chain Engagement+) technology, securely holds the chain in place even on uneven terrain.

---

Technical Specifications

• Model: FC-M6100-1

• Sherry: Shimano Deore M6100

• Areas of application: Cross Country, Marathon, Tour, All Mountain, Enduro, Downhill

• Number of Gears: 12 (1x12)

• Crankshaft Material: Aluminum (black anodized)

• Crankshaft Material: Steel

• Chainring Material: Steel/glass fiber reinforced plastic

• Crankshaft Diameter: 24 mm (Hollowtech II)

• Crankshaft Size Options: 165 mm, 170 mm, 175 mm

• Chainring: 30 or 32 teeth

• Mounting Type: Shimano Direct Mount

• Chainline: 52 mm

• Q-Factor: 172 mm

• Rear Hub Compatibility: 142 mm or 148 mm (Boost)

• Mid-Block Compatibility: BB-MT800-PA (Press Fit 89.5/92 mm), BB-MT800 BSA (68/73 mm) – Center hub not included.

• Chain Compatibility: Shimano 12-speed chains (HG+)

• Weight: Approximately 802 grams (crankset)

• Colour: Black anodized coating

• EAN: 4550170617592

---

Key Technologies and Details

Hollowtech II Technology

Hollowtech II is Shimano's patented technology where the crankshaft is manufactured with a hollow interior. This allows for:

• Weight is significantly reduced.

• Stiffness increases, and power transmission efficiency improves.

• Energy loss is minimized during pedaling.

Direct Mount System

The chainring is mounted directly to the crank arm with a single locking ring, instead of traditional bolted systems. This system:

• It saves weight.

• It greatly simplifies gear changes.

• It offers a cleaner look.

DCE+ (Dynamic Chain Engagement+) Tooth Profile

The special tooth profile technology used in XTR, XT and SLX level cranksets is also standard in the Deore M6100. Thanks to this technology:

• The chain is firmly gripped onto the chainring.

• Chain detachment is largely prevented in rough terrain.

• Driving becomes quieter and smoother.

• Chain wear is reduced.

52 mm Chainline

The 52mm chainstay is fully compatible with 142mm and 148mm (Boost) rear hub standards. This allows for:

• Sufficient space is provided for wide tires.

• An ideal gear angle is obtained.

• Efficient power transmission in all gears.

Wide Range of Applications

Suitable for a wide range of uses, from cross-country to downhill. Ideal for both recreational riders and performance-oriented cyclists.

---

Compatibility

Chain Compatibility

It works perfectly with Shimano's 12-speed HG+ chains:

• CN-M6100

• CN-M7100

• CN-M8100

• CN-M9100

Mid-Block Compatibility

Compatible with the following bottom brackets (bottom bracket sold separately):

• Gear (BSA): SM-BB52 (68/73 mm)

• Press Fit: BB-MT500-PA (89.5/92mm), BB-MT800-PA

Rear Hub Compatibility

• Standard 142 mm rear hubs

• Boost 148 mm rear hubs

---

Why Shimano Deore FC-M6100-1?

• Cutting-Edge Technology: Technologies inherited from XTR, XT and SLX.

• Light and Hard: Excellent power transmission thanks to the Hollowtech II structure.

• DCE+ Tooth Profile: Superior protection against chain fall.

• Direct Mount System: Easy gear changes and low weight.

• Boost Compatible: Smooth operation with 148 mm hubs using a 52 mm chain line.

• Wide Range of Crank Size Options: 165, 170 and 175 mm

• Deore Quality: Shimano's reliability and durability.

---

The Ugur Bicycle Difference

This product is offered for sale with the assurance and guarantee of Uğur Bisiklet. It is a 100% original Shimano product and has a distributor warranty.

Shimano Deore M6100 series and other models:
Ugur Bicycle Shimano Collection

Crankset and drivetrain components:
Gears and Drivetrain

---

Box Contents

• 1 x Shimano Deore FC-M6100-1 Crank Set

• 1 x Chainring (30T or 32T, depending on the model selected)

• 1 x Chainring Locking Ring

• 1 x Front Load Adjustment Cover

Notes: The bottom bracket is not included in the product and must be purchased separately.

---

Conclusion

The Shimano Deore FC-M6100-1 crankset is the perfect choice for modern 1x12 systems, combining high-end technology with affordability. Designed to handle any terrain, it combines the stiffness of Hollowtech II, the chain grip of the DCE+ tooth profile, and the ease of the Direct Mount system. Available in 30 or 32 tooth options and various crank sizes, it caters to many riding styles. It's an ideal investment for those seeking Shimano Deore quality and reliability.
