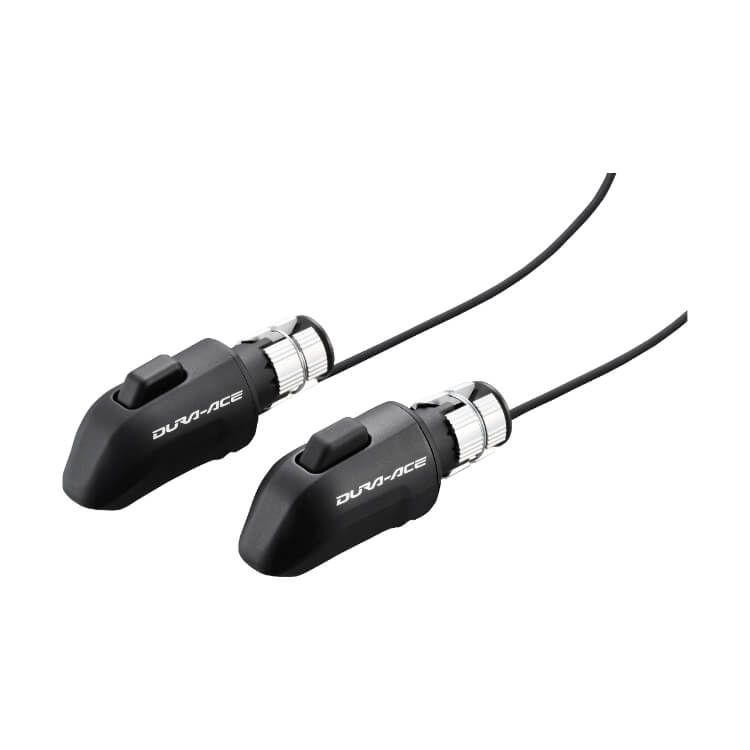

Shimano Dura-Ace SW-9071 Di2 Aero Bar / TT Shift Lever ISW9071

Precise Control for Those Racing Against Time

Shimano Dura-Ace SW-9071 are Di2 electronic shifters specifically designed for time trial (TT) and triathlon bikes, mounted on aero handlebar ends. Eliminating friction, dirt, and stretching issues caused by traditional mechanical cables, this system ensures flawless and instantaneous gear changes in all conditions.

A single button press, as light as a mouse click, is enough for the front or rear derailleur to instantly select the correct gear.  This allows you to shift gears effortlessly and comfortably, even when your hands are cold or tired.

---

Technical Specifications

---

Technologies and Detailed Analysis

Di2 Electronic Transmission System

Shimano's revolutionary Di2 technology offers undeniable advantages over mechanical shifting systems:

• Instant and Precise Gear Shifting : Every gear change occurs as soon as the button is pressed. There is no waiting or delay.

• Low Effort : A touch as light as a mouse click is all it takes. This ensures comfortable use even when you're tired.  .

• Friction-Free Operation : Unlike traditional gear cables, there are no problems such as contamination, rust, or stretching. It delivers consistent performance under all conditions.  .

• Automatic Adjustment : The system automatically adjusts itself to compensate for wear on the chain and sprockets.

Two-Way Control Capability

SW-9071 shift levers are designed to control the rear derailleur:

• Single Button Design : One lever is used for up gear shifting, the other for down gear shifting. Simple and intuitive.  .

• Two Different Ways to Use It :

  1. Standalone operation by connecting directly to the SMEW90 junction box.

  2. Dual-position gear shifting is possible when used with STI shift paddles.

Thanks to this feature, you can shift gears from different points while braking or in aero position. This flexibility is only possible with Di2 systems.  .

Easy Installation

• Cables are pre-attached : Each shift lever comes with a 600mm long E-tube cable. This eliminates the need to purchase additional cables, shortening installation time.  .

• E-tube Compatibility : Works seamlessly with all Shimano Di2 components (battery, junction boxes, derailleurs).

---

Assembly and Use

SW-9071 shifters are mounted to the aero bar ends of TT or triathlon handlebars. During installation:

1. Place the arms onto the handlebar ends and secure them.

2. Connect the cables to the junction box by routing them either through or outside the handlebars.

3. Complete the connection with the transmitters via the junction box.

4. With the e-tube project software, you can personalize the gear shifting logic (such as which button shifts gears in which direction).

---

Compatible Systems

Shimano SW-9071 shifters are fully compatible with the following systems:

• Dura-Ace Di2 (9070 series) : For use with front and rear derailleurs.

• Ultegra Di2 (6870 series) : Mixed use with the sub-assembly is possible.

• E-tube Systems : All SD50 wired Di2 components

Note : This product is designed for 11-speed systems.  12-speed transmission is not compatible with new generation Di2 systems (9200 series).

---

Frequently Asked Questions

Q: Are these shift levers only for rear derailleur?
C: Yes, in standard use it only controls the rear derailleur. However, it can also be assigned to the front derailleur via junction box settings.

Q: How many meters of cable are included?
C: Each shifter comes with a 600mm cable attached. This length is sufficient for most TT handlebar setups.  .

Q: Where are the batteries?
C: This product is just the gear shifter. The system's battery must be purchased separately (usually integrated into the seat post or junction box).

Q: Will it cause problems in the rain?
C: Di2 systems are fully protected against water and moisture. They work flawlessly even in the rain.

---

Why Shimano Dura-Ace SW-9071?

1. Professional-Level Performance : The choice of the world's best time trial cyclists.

2. Precise Control : Instant gear changes with a touch as light as a mouse click.

3. Dual Position Operation : Allows simultaneous control from both Aero bar tips and STI handlebars.

4. Maintenance-free : The cable is free from stretching, dirt, and rust.

5. Lightweight : Weighing only 60 grams, it supports aerodynamic advantages.

6. Easy Installation : Cables come pre-connected, reducing assembly time.

---

The Ugur Bicycle Difference

This product is offered for sale with the assurance and guarantee of Uğur Bisiklet. It is a 100% original Shimano product and has a distributor warranty.

Shimano Di2 and Other Electronic Gear Components : To explore Uğur Bisiklet's Shimano collection Click here .

---

Box Contents

• 1 x Shimano Dura-Ace SW-9071 Di2 Aero Bar Shifter (pair)

• 2 x 600mm E-tube cables (installed)

---

Conclusion

Shimano Dura-Ace SW-9071 Di2 shifters are a top-tier electronic shifting solution for time trial and triathlon bikes. Eliminating all the drawbacks of traditional mechanical systems, Di2 technology delivers flawless and effortless shifting in all conditions.

These levers, mounted on the ends of aero bars, respond instantly with a single touch. Thanks to their dual-position capability, you can shift gears whether in aero position or while braking. Their lightweight design (60 grams) and pre-attached cables make installation extremely practical.

For those racing against time, the SW-9071 offers a seconds-saving advantage.
